Gujarat Technological UniversityWinter 2024 examination

GTU 3110013 Engineering Graphics & Design (EGD) Winter 2024 Question Paper & PDF

B.E. · Common Engineering · Semesters 1 and 2 · Subject code 3110013

Download official PDF View PDF here

Share with your class

Total: 70 marks
To pass: 23 marks (33%)
Duration: 2.5 Hours 10:30 AM – 1:30 PM
Questions: 5 with internal choice

No solutions on this paper yetNeed them for your exam? Ask once. Papers that students ask for are solved first, and we aim to add them within 24 hours.

5 of 24 questions on this paper were also asked in other years. 14 more are types of question GTU sets again with new data. Each is marked below with the years it appeared.See all 26 repeated 3110013 questions, most asked first

Q.1

14 Marks

(a)

3 marks

Explain reducing scale. Give two practical applications of it.

(b)

4 marksAsked in 4 of 7 papers

Draw symbol of following and right use of it.

1)Cutting Plane line

2)Dimension line

3)Break line

4)Section Line

Also asked in Winter 2025 Q4b, Winter 2023 Q2b, Summer 2023 Q1a

(c)

7 marksSame type asked in 7 of 7 papers

The distance between two trees on road is 876m. Show it on a scale of 1:6250. Also show distance of 653m distance between two vehicles parked on a side of the road.

Also asked in Summer 2026 Q2b, Winter 2025 Q1a, Summer 2025 Q1b, Summer 2024 Q1b, Winter 2023 Q1b, Summer 2023 Q1b

Q.2

14 Marks

(a)

3 marksAsked in 3 of 7 papers

Define ellipse. What is eccentricity? What is the value of eccentricity for ellipse?

Also asked in Winter 2025 Q4a, Winter 2023 Q2a, Winter 2023 Q4a

(b)

4 marks

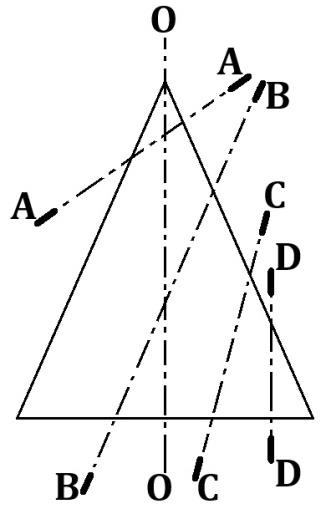

When we cut a cone using cutting planes as shown in figure, name the curves which are available as cut section of cone with particular cutting plane.

GTU Engineering Graphics & Design (3110013) Winter 2024 Question 2(b) Diagram

(c)

7 marksSame type asked in 5 of 7 papers

Draw involute of a string unwound for the given figure from point C, where AC = 40 mm and BC = 30 mm

GTU Engineering Graphics & Design (3110013) Winter 2024 Question 2(c) Diagram

Also asked in Summer 2026 Q3b, Summer 2025 Q3b OR, Summer 2024 Q1c, Summer 2023 Q1c

(c)

7 marksSame type asked in 5 of 7 papers

Draw an ellipse using concentric circle method. Given the distance between Foci is 90mm and length of major axis is 130mm.

Also asked in Summer 2026 Q1c, Winter 2025 Q1c, Summer 2025 Q1c, Winter 2023 Q2c OR

Q.3

14 Marks

(a)

3 marksSame type asked in 7 of 7 papers

A circular plane of 50 mm diameter is perpendicular to HP and VP. The centre of plane is 30mm above HP and 35mm in-front of VP. Draw its projection.

Also asked in Summer 2026 Q2c, Summer 2026 Q4c, Summer 2026 Q4b OR, Winter 2025 Q3c, Winter 2025 Q3c OR, Summer 2025 Q4b, Summer 2025 Q4b OR, Summer 2024 Q4c, Summer 2024 Q4b OR, Winter 2023 Q3b, Winter 2023 Q3c, Winter 2023 Q4c OR, Summer 2023 Q3b, Summer 2023 Q3c, Summer 2023 Q3b OR, Summer 2023 Q3c OR

(b)

4 marksSame type asked in 7 of 7 papers

A thin rectangular plate of side 40mm x 20mm has its shorter side in HP. Project its front view when its top view is a perfect square of 20mm side.

(c)

7 marksSame type asked in 7 of 7 papers

The top view of a 75mm long line AB measures 65mm, while its front view measures 50mm. It’s one end A is in HP and12mm in front of VP. Draw the projections of AB and determine its inclination with HP and VP

Also asked in Summer 2026 Q2c OR, Summer 2026 Q3c, Summer 2026 Q3a OR, Summer 2026 Q3c OR, Winter 2025 Q2c, Winter 2025 Q2c OR, Summer 2025 Q2c, Summer 2025 Q3b, Summer 2025 Q3a OR, Summer 2025 Q3c OR, Summer 2024 Q3b, Summer 2024 Q3c, Winter 2023 Q3b OR, Winter 2023 Q3c OR, Summer 2023 Q3a, Summer 2023 Q3a OR

(a)

3 marksSame type asked in 7 of 7 papers

Draw the projection of following points

1Point A is 20 mm above HP and 35 mm behind VP

2Point B is 20 mm below HP and 35 mm in front of VP

3Point C is in VP and 15 mm above HP

Also asked in Summer 2026 Q1b, Winter 2025 Q2a, Summer 2025 Q2b, Summer 2024 Q3a, Winter 2023 Q4b, Summer 2023 Q2a

(b)

4 marksSame type asked in 7 of 7 papers

A rhombus of 30mm and 50mm diagonal is resting on HP on one of its corner such that it appears a square of 30mm diagonals. Find its inclination with HP.

(c)

7 marksSame type asked in 7 of 7 papers

A pentagonal plane having edges 25 mm is placed on one of its corners on HP such that the surface makes an angle 30° with HP and side opposite to that corner on which the plane rests inclined at 60° to VP. Draw the top and front views of the plane.

Q.4

14 Marks

(a)

3 marks

Define solid of revolution? Give three example of solid of revolution.

(b)

4 marksSame type asked in 6 of 7 papers

A hexagonal prism, edge of base 25 mm and axis 65 mm long, rests with its base on H.P such that one of its rectangular faces is parallel to

VP. It is cut by a plane perpendicular to V.P and parallel to HP and 30mm above HP. Draw the development of the lateral surface of the truncated prism.

Also asked in Summer 2026 Q4a OR, Winter 2025 Q4c, Summer 2025 Q4c, Summer 2025 Q4a OR, Winter 2023 Q4c, Winter 2023 Q4b OR, Summer 2023 Q4c, Summer 2023 Q4b OR

(c)

7 marksSame type asked in 6 of 7 papers

Draw the top view and front view of a rectangular pyramid of sides of base 40 mm x 50 mm and height 70mm when it lies on one of its larger triangular faces on HP. The longer edge of the base of the triangular face lying on HP is inclined at 60° to VP in the top view with the apex of the pyramid being nearer to VP.

Also asked in Summer 2026 Q4a, Summer 2026 Q4b, Summer 2026 Q4c OR, Winter 2025 Q3b, Summer 2025 Q4c OR, Summer 2024 Q4c OR, Summer 2023 Q4b

(a)

3 marksAsked in 2 of 7 papers

Differentiate between prism and pyramid.

Also asked in Winter 2023 Q3a

(b)

4 marks

Bisect one of the interior angle of regular pentagonal plane having sides of 30mm.

(c)

7 marksSame type asked in 6 of 7 papers

A square pyramid having 30mm edge of the base and axis of 70mm long and axis parallel to VP and inclined at 60° to HP. Draw projection of pyramid if one of the edge of its base inclined at 30° to VP and apex is on HP and 40 mm away from VP.

Also asked in Summer 2026 Q4a, Summer 2026 Q4b, Summer 2026 Q4c OR, Winter 2025 Q3b, Summer 2025 Q4c OR, Summer 2024 Q4c OR, Summer 2023 Q4b

Q.5

14 Marks

(a)

4 marksAsked in 2 of 7 papers

Draw isometric scale for the line of length 100mm. Mark 53mm on it.

Also asked in Winter 2025 Q5a OR

(b)

10 marksSame type asked in 7 of 7 papers

Draw Front view, Top View and Right hand side view using 1st angle projection method.

Also asked in Summer 2026 Q5c, Winter 2025 Q5c, Summer 2025 Q5b OR, Summer 2024 Q5b, Winter 2023 Q5b, Summer 2023 Q4c OR, Summer 2023 Q5c OR

(a)

3 marks

Which AUTOCAD command can be used to create Part B from Part A for the following figures?

1)2)

(b)

4 marksAsked in 5 of 7 papers

Advantages of AUTOCAD over conventional drawing.

Also asked in Winter 2025 Q4b OR, Summer 2025 Q5a OR, Winter 2023 Q4a OR, Winter 2023 Q5a, Summer 2023 Q5a

(c)

7 marksSame type asked in 7 of 7 papers

Draw isometric drawing of the following views.

Also asked in Summer 2026 Q5b, Summer 2026 Q5c OR, Winter 2025 Q5c OR, Summer 2025 Q5b, Summer 2024 Q5b OR, Winter 2023 Q5b OR, Summer 2023 Q5c
