Gujarat Technological UniversityWinter 2023 Examination

GTU 3160704 Theory of Computation (TOC) Winter 2023 Paper Solution & PDF

B.E. · Computer Engineering · Semester 6 · Subject Code: 3160704
Download Official GTU PDF
Share:
Total Marks70 MarksExternal theory exam
Passing Marks23 Marks33% minimum cutoff
Exam Duration2.5 Hours2:30 PM – 5:00 PM
Paper Structure5 QuestionsWith internal OR choices
Jump toQ1Q2Q3Q4Q5

Question 1

14 MarksMedium
(a)
Say whether the statement (p ᴧ (p → q)) → q is tautology or
contradiction.
3 Marks
(b)

The given relation R on set A= {1,2,3} determine whether the Relation is reflexive, symmetric or transitive, give reason. R ={(1,1), (1,2), (2,1), (2, 2), (3,2),(3,3)}

4 Marks
(c)
Write Principle of Mathematical Induction. And prove for every n ≥ 1,
7 Marks

Question 2

14 MarksMedium
(a)
Define FA and Write recursive definition of NFA
3 Marks
(b)

Find a regular expression of following subsets of {0, 1}*

1The language of all strings that begin or end with 00 or 11.
2The language of all strings ending with 1 and not containing 00.
4 Marks
(c)
Draw Finite Automata to accept following over input alphabets Σ ={0, 1}
i)The language accepting strings not ending with ’01’ .
ii)The language accepting strings not containing substring ‘00’
7 Marks
OR OPTION
(c)

Let M1 and M2 be the FAs pictured in Figure, recognizing languages L1 and L2 respectively. M1-- M2-- Draw FAs recognizing the following languages.

aL1 U L2
bL1 - L2
7 Marks

Question 3

14 MarksMedium
(a)
Find context-free grammar for the language: L= {aibjck | i=j+k}
3 Marks
(b)

Define mealy machine. Design and mealy machine that gives output ‘x’ if input of sequence is abb, otherwise z.

4 Marks
(c)

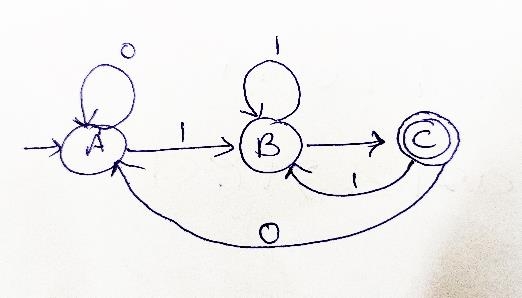

Convert NFA- Λ to FA for following
GTU Theory of Computation (3160704) Winter 2023 Question 3(c) Diagram
7 Marks
OR OPTION
(a)
Define Ambiguous grammar. for following grammar say whether the
grammar is ambiguous or not. give reason
S→ABA, A→aA | Λ , B→bB | Λ
3 Marks
(b)
Convert the given Moore machine into Mealy machine. Draw state
transition diagram of Mealy machine.
Present
State
Next State Output
0 1
→p0 r q0 ɛ
p1 r q0 1
q0 p1 s0 0
q1 p1 s0 1
r q1 p1 0
s0 s1 r 0
s1 s1 r
4 Marks
(c)
Find minimum state FA for following
GTU Theory of Computation (3160704) Winter 2023 Question 3 OR (c) Diagram
7 Marks

Question 4

14 MarksMedium
(a)
State pumping lemma for context free language.
3 Marks
(b)
Construct PDA for
S → 0AB
A → 1A | 1
B → 0B | 1A | 0
Trace the string 01011 using PDA.
4 Marks
(c)
Write Kleen’s Theorem part -1.
7 Marks
OR OPTION
(a)
Define Push Down Automata
3 Marks
(b)
Using kleene's Theorem Draw NFA-Λ for a given RE aa(ba)*+b*aba*
4 Marks
(c)
Given the context-free grammar G, find a CFG G’ in Chomsky Normal
Form.
S -> AaA | CA | BaB
A -> aaBa | DC
B -> bb | aS
C -> Ca | bC | D
D -> bD | Λ
7 Marks

Question 5

14 MarksMedium
(a)
Explain Universal Turing Machine
3 Marks
(b)
Design a PDA to accept L = {xcy | x, y∈ (a,b)* and |x| = |y|}.
4 Marks
(c)
Develop a Turing Machine to accept palindromes over {a,b}*
7 Marks
OR OPTION
(a)
Define grammar and Chomsky hierarchy.
3 Marks
(b)
Design a PDA to accept L = {aibjCk| j = i+k}.
4 Marks
(c)

Develop a Turing Machine to accept the language L = {X / Na(X)=Nb(X) , X ∈ {a,b}*}

7 Marks
